Sack trucks

Title
Sack trucks
Subtitle
Multifunctional
  • Mobile and folding models or rigid welded construction
  • Stainless steel models for wet operations
  • Ergonomic design
  • Modular system for maximum adaptability and flexibility






Products

Folding sack trucks

Very compact when folded | quickly ready for use | even better handling | safe transport with the Spannfix system | puncture-proof solid tyres

Folding sack trucks
Design features
  • Wheels and toe fold out simultaneously with one hand movement
  • The ideal combination of special plastics, aluminium and steel
  • With the new plastic hand grips makes handling and carrying even easier
  • The unique Spannfix system consisting of clamping bar and tensioning strap ensures every load is securely lashed to the barrow.
  • Puncture-proof tyres guarantee improved comfort over uneven surfaces (kerbs or stair treads)


Steel tube and aluminium sack trucks

Robust rigid welded construction | very light and easy to handle | safety hand grips | wheel guards

Steel tube and aluminium sack trucks
Sack trucks made of steel tube

This robust product line is more simply equipped, but provides all of the basic functions that can be expected from classic sack trucks

Choice of solid rubber or pneumatic tyres on plastic rims

Roller bearing hubs

Rigid welded construction

Scratch-proof finish powder coated to RAL 5007 (Brilliant blue)

Light aluminium tubular construction for easy handling

Supplied disassembled


Other models

made from aluminium tube

light and easy to handle

Sackrodeln Alu 1220460 3
Aluminium sack trucks



Steel tube, aluminium and stainless steel crate trolleys

Rigid welded construction | aluminium tube with aluminium toe | stainless steel versions also available

Steel tube, aluminium and stainless steel crate trolleys

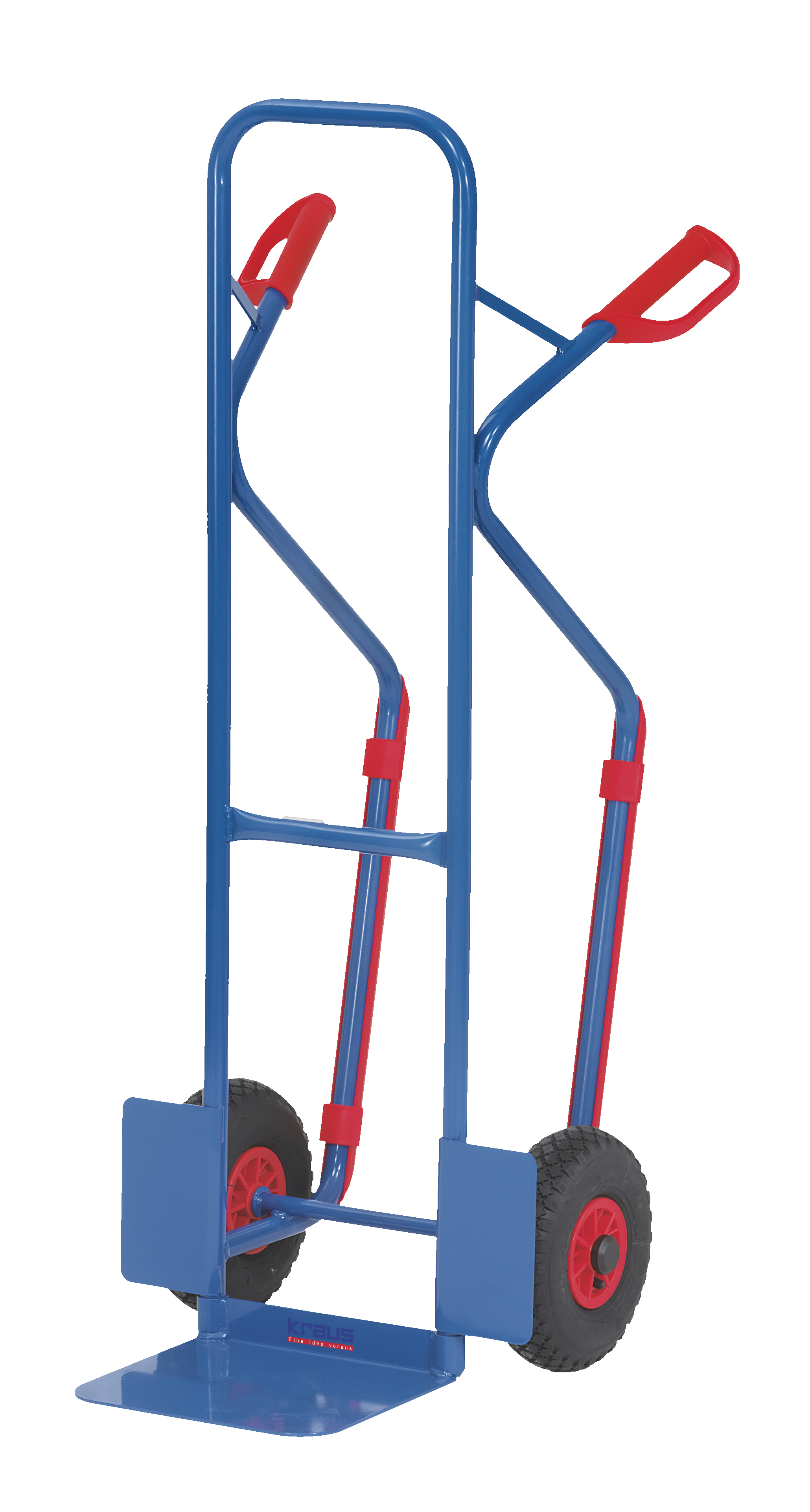

Tubular steel crate trolley

  • Rigid welded construction
  • Scratch-proof finish powder coated to RAL 5007 (Brilliant blue)
  • Safety hand grips
  • Wheel guards
  • Choice of solid rubber or pneumatic tyres on plastic wheel centres, roller bearing hubs
  • Supplied disassembled

Stainless steel crate trolley

  • Stainless steel sack trucks /crate trolleys
  • are particularly suitable for use in wet operations
  • 4 mm thick toe
  • Wheel guards
  • Safety hand grips
  • Solid rubber tyres: Black plastic wheel centre, 250 Ø x 60 mm, roller bearing
  • Pneumatic tyre: with blue plastic wheel centre, 260 Ø x 85 mm, roller bearing, car tyre valve

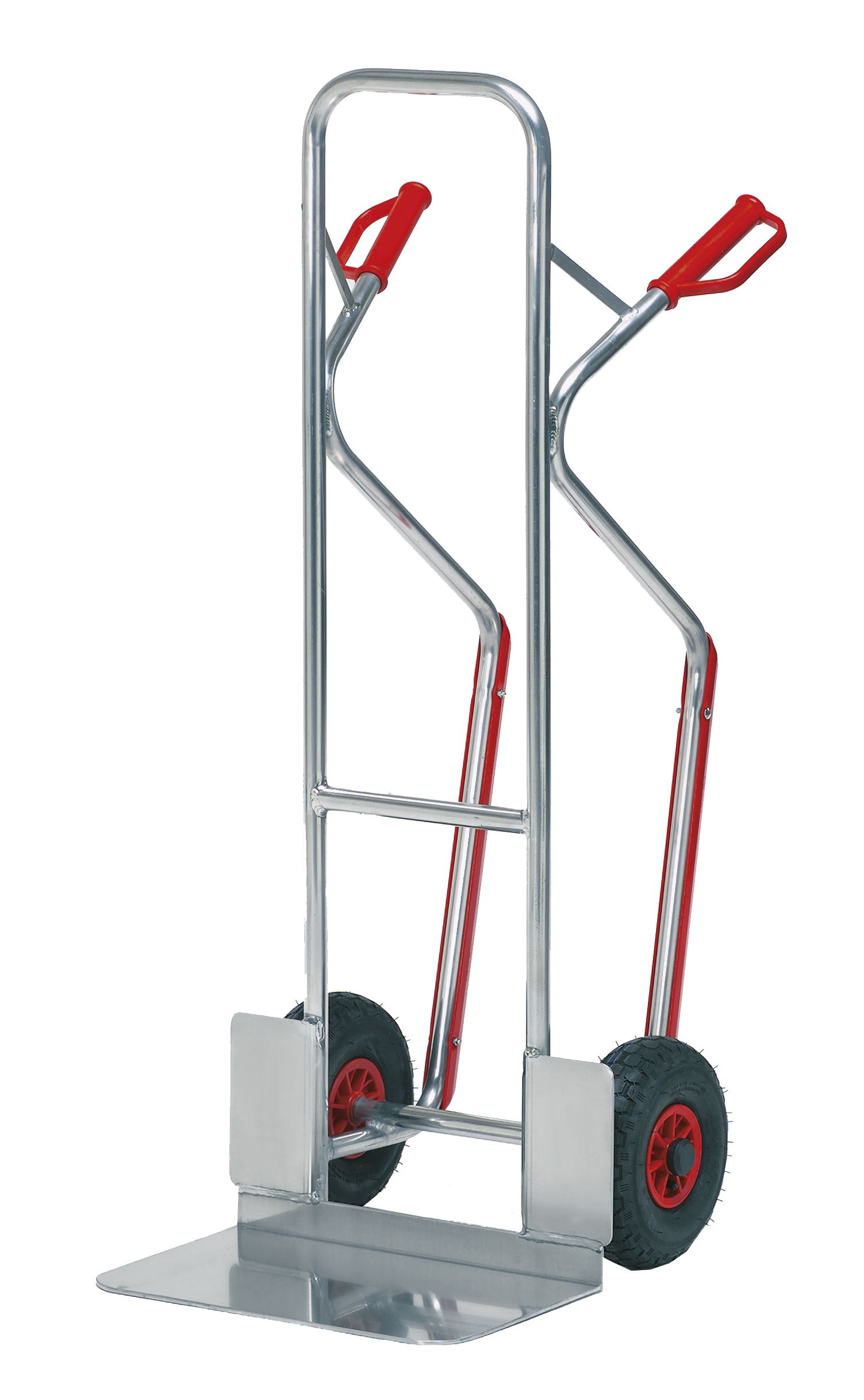

Aluminium crate trolleys

  • Aluminium tube with aluminium toe
  • Light and easy to handle
  • Safety hand grips
  • Wheel guards
  • Pneumatic tyres on plastic wheel centres
  • Roller bearing hubs



Kistenrodeln Aluminium
Aluminium crate trolleys






Steel tube and aluminium crate trolleys with wheel-slide protection

Available with rigid welded construction or as an aluminium models

Steel tube and aluminium crate trolleys with wheel-slide protection

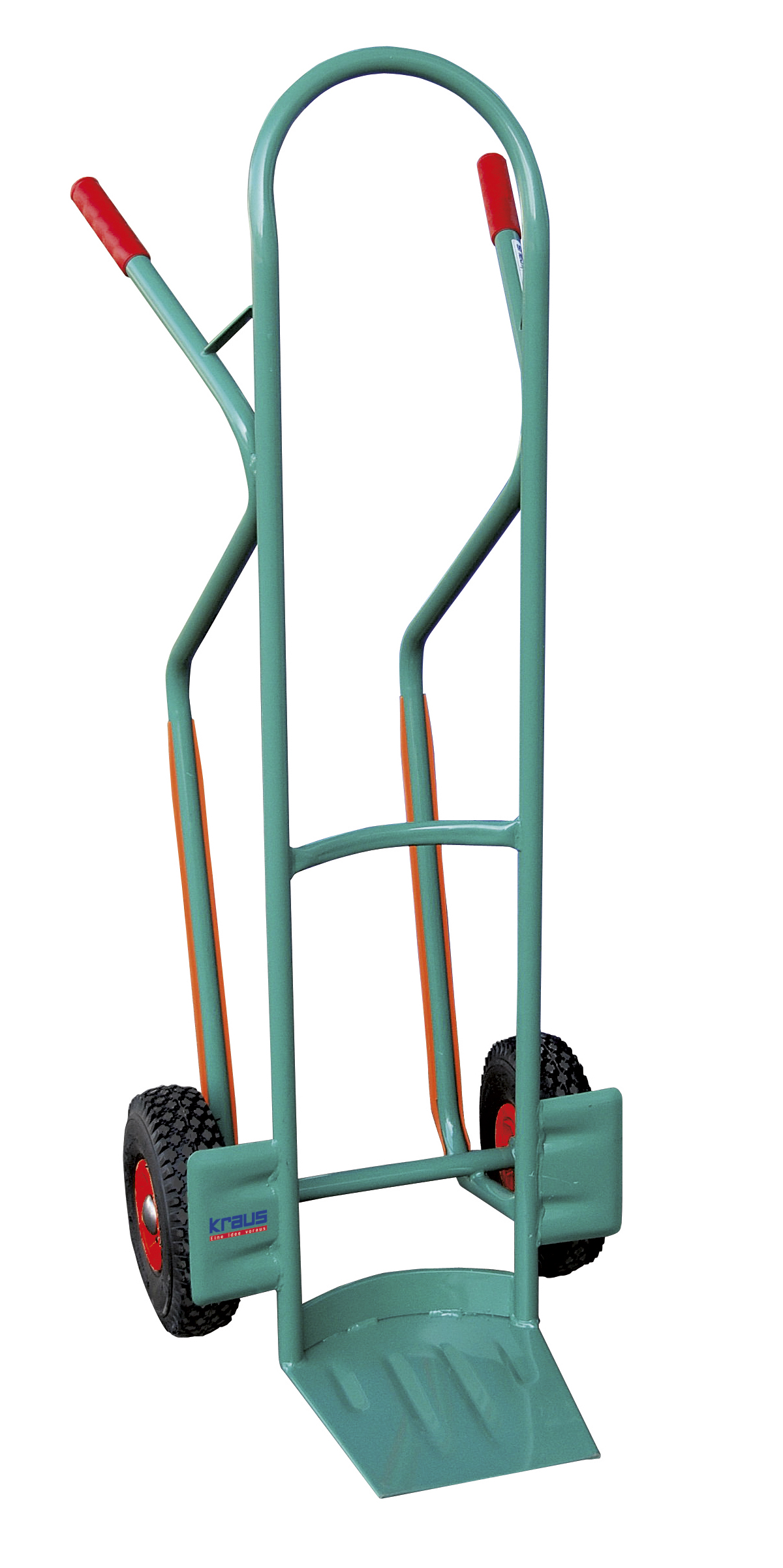

Tubular steel crate trolley with wheel-slide protection
  • Welded tubular steel
  • powder coated to RAL 6000 (Patina green)
  • Tyres: Pneumatic with roller bearing or solid rubber tyre with ball bearing

Aluminium crate trolley with wheel slide protection

  • Light aluminium crate trolley for transport over stairs and thresholds
  • Rustproof
  • Pneumatic tyres



Alu-Kistenrodel mit Gleitschutz
Aluminium crate trolley with wheel slide protection



Stair climber trucks

Three- and five-wheel models | for transport on stairs and level floors

Stair climber trucks
Three-wheel stair climber truck


Available as two material options
Plastic coated steel tube
Aluminium - low dead weight
Strong toe
Safety hand grips

Load capacity

up to 150kg

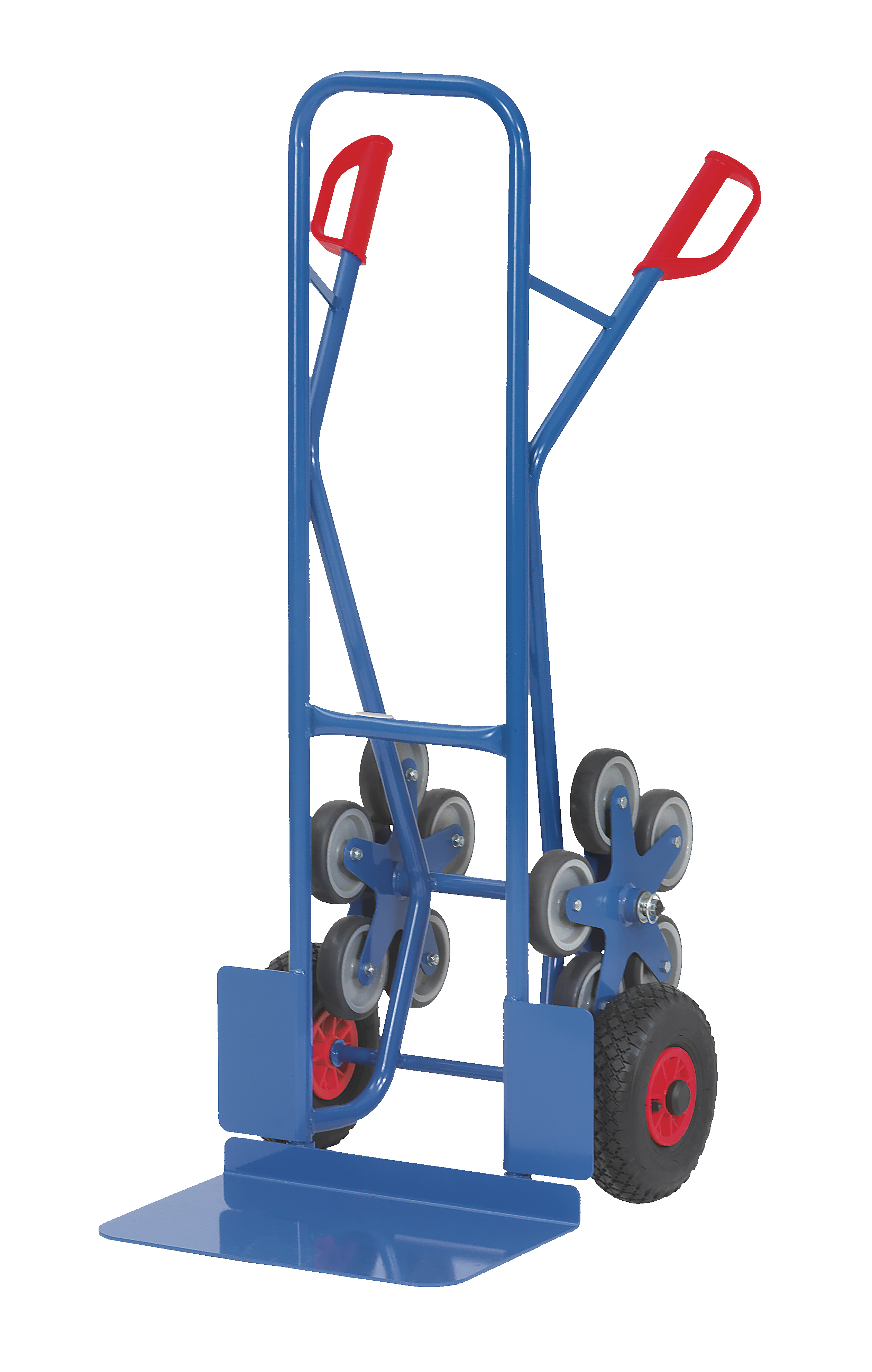

Five-wheel stair climber truck


with 2 pneumatic tyres
Plastic wheel centres
Roller bearing hubs and two five-wheel assemblies
each with five solid rubber tyres ø 125 mm
Screw-on steel toe

Load capacity

up to 200 kg

Treppenrodeln Fünfstern Typ TK
Five-wheel stair climber truck
Typ TK





Chair trolleys

Rigid welded construction

Chair trolleys
Design features

Powder coated to RAL 5007 (Brilliant blue)
Safety hand grips
Choice of solid rubber or pneumatic tyres
Plastic wheel centres, roller bearing hubs
Supplied disassembled
The carrying frame can be attached to the trolley with a single operation, continuously adjustable in height and self-locking
The trolley is readily available for transporting other loads
In the rest position, the carrying frame can be suspended from the side rails
The fixing is by means of a Velcro strap

Length of support arm

500 mm

Width of toe

250 mm

Load capacity

70 kg

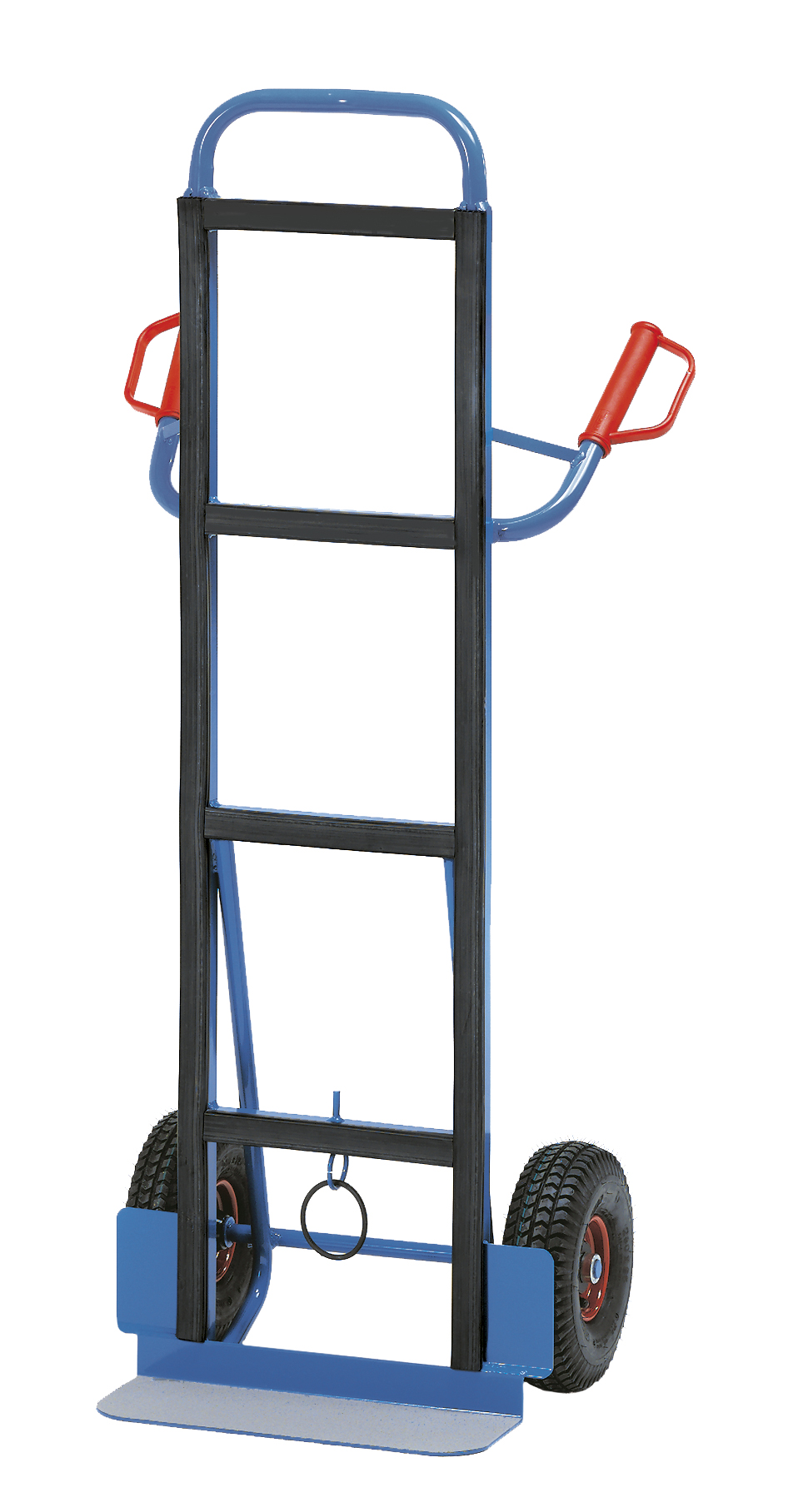

Sack trucks for transporting goods

including ovens, refrigerators, washing machines etc.

Sack trucks for transporting goods
Design features
  • Wide rubber pad
  • Anti-slip pad on the toe
  • Welded tubular steel construction, powder coated to RAL 5007 (Brilliant blue)
  • Roller bearing hubs



Tyre sack trucks and trolleys

For transporting of stacks of tyres safely and conveniently

Tyre sack trucks and trolleys
Tyre sack trucks

  • The specially designed support arms enable effortless loading without damaging the tyres
  • The support arms can be controlled via the lever arms on the back of the sack truck
  • The special vertical bar design prevents damage to the rims and wheels
Tyre trolley
  • Steel tube and plate construction
  • bolted, powder coated to RAL 5007 (Brilliant blue)
  • 4 swivel castors with solid rubber tyres
  • Roller bearing hubs
  • Two castors with brakes
  • Tyre racks on model type 4585-4586 can be screwed on to the end frames at vertical intervals of 150 mm

Additional Features of sectional steel design
  • Base from waterproof mesh-faced phenolic multiplex board
  • Tyre racks can be hooked on at vertical modules of 120 mm
  • Due to the articulated mounting brackets, the racks automatically adjust to the tyre size
  • 2 swivel castors and 2 fixed castors with solid rubber tyres
  • Locks on the swivel castors

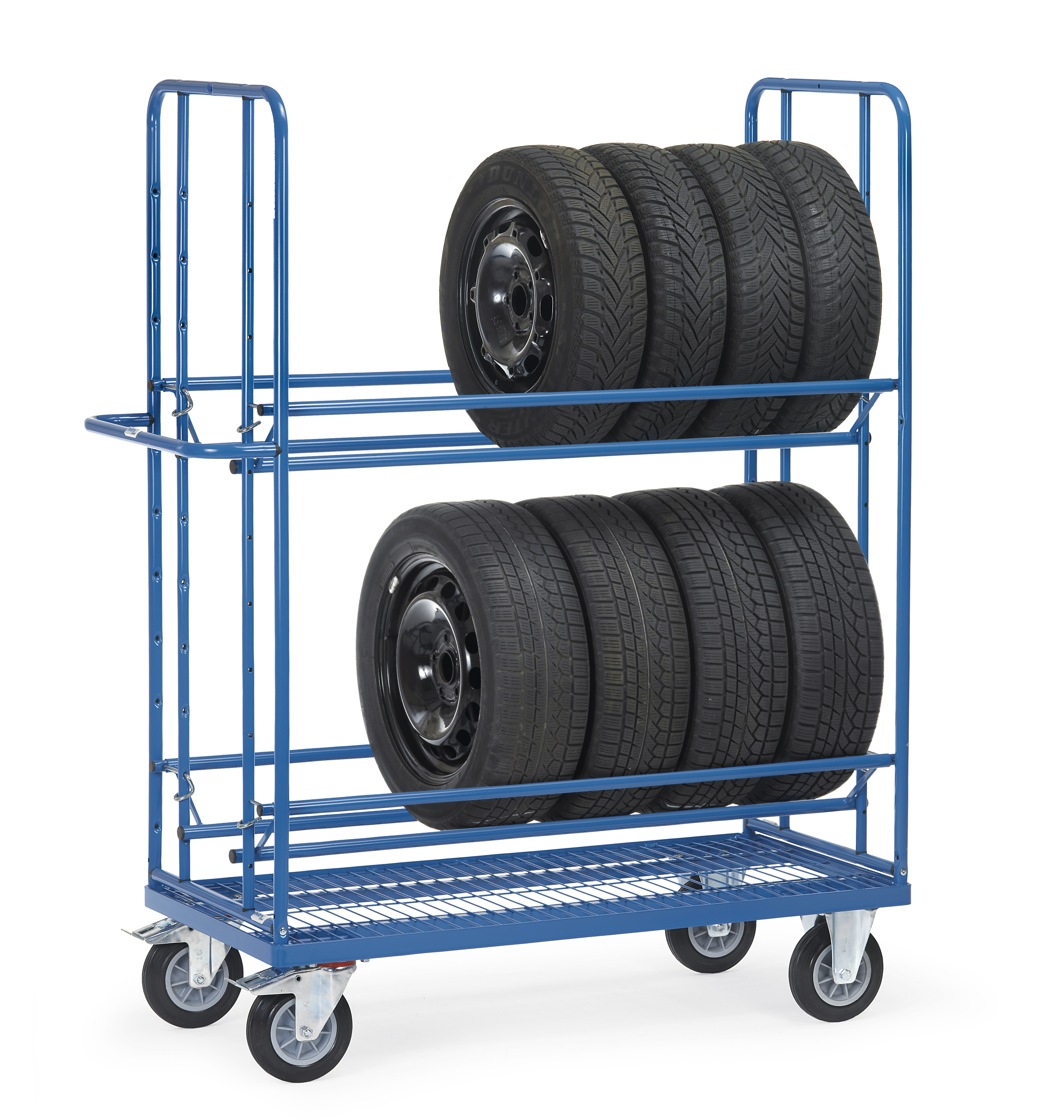

Reifenwagen Typ 4596
Tyre trolley model 4596



Gas cylinder trolleys

Welded steel tube construction | also available with retention chain

Gas cylinder trolleys
Design features
  • Powder coated to RAL 5007 (Brilliant blue)
  • Choice of either solid rubber (250 x 60 mm) or pneumatic tyres (260 x 85 mm)
  • Roller bearing hubs





Drum trucks, drum tipping cradles and drum dollies

for tipping and transporting drums

Drum trucks, drum tipping cradles and drum dollies

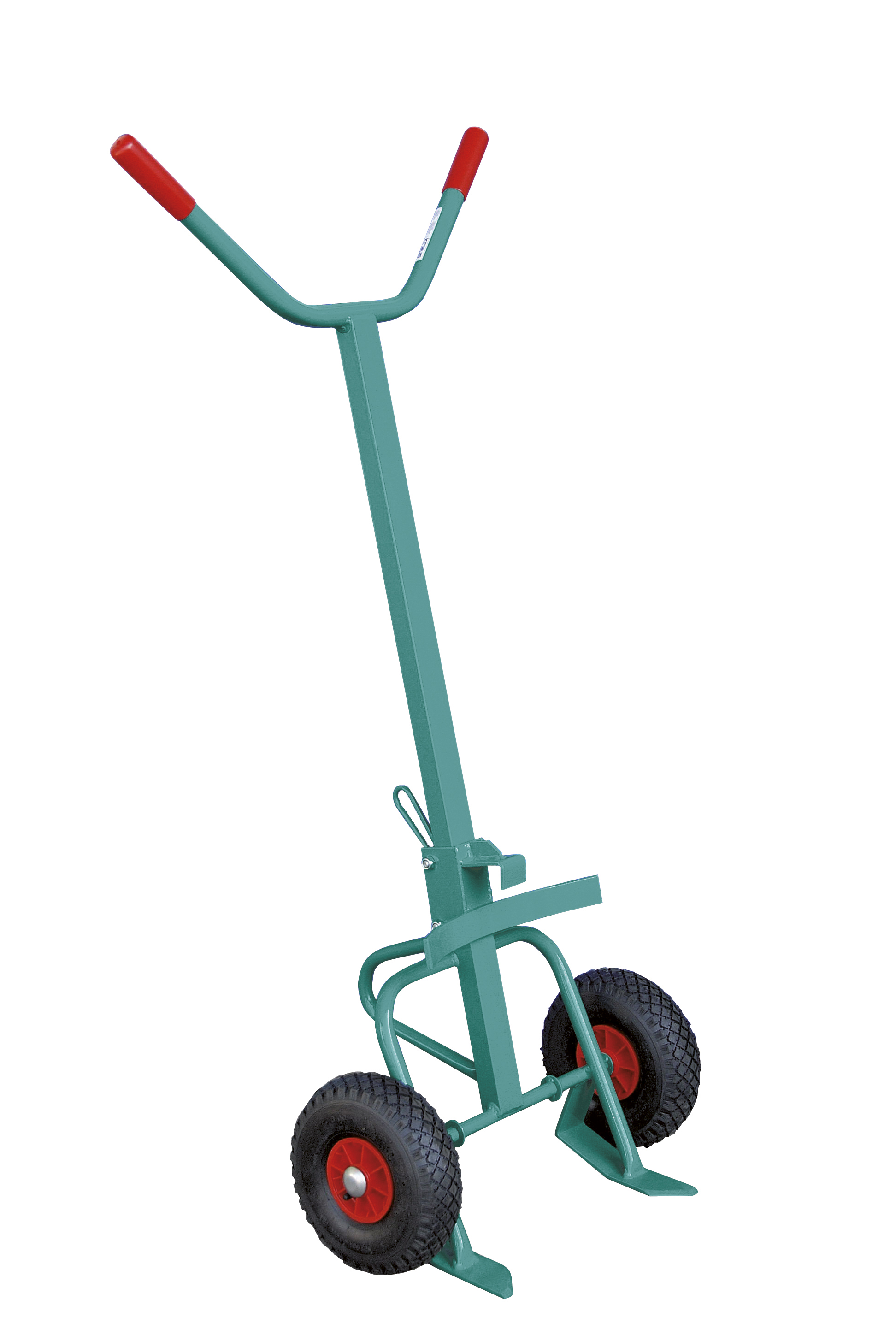

Drum trucks

  • Drums are easily loaded by means of two sloping runners
  • Adjustable grippers
  • Also available: Drum trucks for all rimmed 200-litre drums and plastic drums up to 220 litres



Drum tipping cradle

  • Drum loading by means of two sloping runners
  • 4 nylon drum support wheels
  • 2 nylon wheels and swivel Castors
  • Slot-in lifting rod facilitates lifting the drum from the floor



Fasskipper Typ 905 FHB
Drum tipping cradle model 905 FHB





Drum dolly

  • Welded steel construction, powder coated to RAL 5007 (Brilliant blue)
  • 4 swivel castors, 2 castors with locks
  • Polyamide wheels
  • Plain bearing hubs






Fassroller
Drum dolly 1220515 3
