Choose from a comprehensive range!
- Power-driven conveyor rollers for round belts, applications with multi-W belt, toothed belt or chain drive
- For light and heavy unit loads
- In different versions with properties such as low-noise operation or gentle transport of material
You will find an overview of KRAUS conveyor rollers here
Products

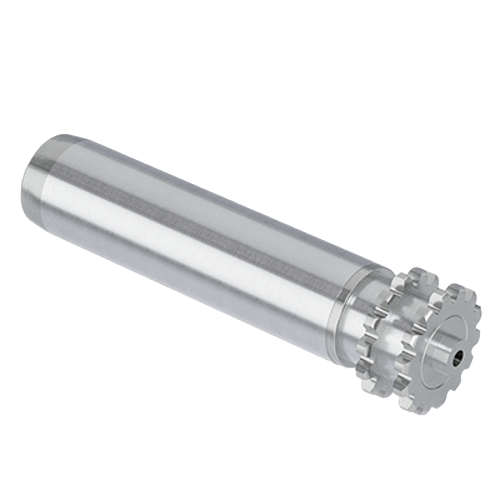

Power-driven conveyor rollers with chain drive series 4550, 5070
Use
For in-house unit handling and Transport
Resistant to temperatures from –10 °C to +40 °C
Maximum dynamic load capacity
Conveyor roller Ø 50 mm 0.8 kN
Conveyor roller Ø 60 mm 1.0 kN
Maximum conveying speed
0.5 m/s for conveyor roller with Ø 50, Ø 60 mm
Tube dimensions
Galvanised steel tube acc. to DIN 2394: Ø 50 x 1.5 mm; Ø 60 x 1.5 mm
Axle
Bright steel Ø 10, Ø 12, Ø 14, Ø 15 mm
Versions Internal thread, external thread, spring-loaded axle, rigid axle, width across flats
Chain wheel
Single chain wheel
Series 4550: 1/2" x 5/16", number of teeth = 11 made of steel
Series 5070: 1/2" x 5/16", number of teeth = 14 made of steel
Bearing
Precision grooved ball bearing 6202-ZZ (-2RS)
Non-power-driven roller side: Series 3700
Power-driven conveyor rollers with chain drive series 5020
Use
For in-house unit handling and Transport
Resistant to temperatures from –10 °C to +40 °C
Maximum dynamic load capacity
Conveyor roller Ø 50 mm 0.8 kN
Conveyor roller Ø 60 mm 1.0 kN
Maximum conveying speed
0.5 m/s for conveyor roller with Ø 50 mm, Ø 60 mm
Tube dimensions
Galvanised steel tube acc. to DIN 2394: Ø 50 mm, Ø 60 mm
Axle
Bright steel Ø 10, Ø 12, Ø 14, Ø 15 mm
Versions Internal thread, external thread, spring-loaded axle, rigid axle, width across flats
Chain wheel
Double chain wheel
1/2" x 5/16", number of teeth = 14 made of steel
Bearing
Precision grooved ball bearing 6202-ZZ (-2RS) with metal seals
Non-power-driven roller side: Series 3700
Power-driven conveyor rollers with chain drive series 5100
Use
For in-house unit handling and transport, particularly pallet handling
Resistant to temperatures from –30 °C to +80 °C
For heavy materials to be conveyed such as pallets and containers
Maximum dynamic load capacity
Conveyor roller Ø 80 mm 2.5 kN
Conveyor roller Ø 89 mm 5.0 kN
Conveyor roller Ø 108 mm 5.0 kN
Maximum conveying speed
0.8 m/s for conveyor roller with Ø 80, Ø 89, Ø 108 mm
Tube dimensions
Galvanised steel tube acc. to DIN 2394: Ø 80 x 2mm, Ø 80 x 3 mm, Ø 89 x 3 mm, Ø 108 x 3.25 mm
Axle
Bright steel Ø 20, Ø 25 mm
Versions Internal thread, external thread, rigid axle, width across flats
Chain wheel
Double chain wheel
Series 5103: 5/8" x 3/8", number of teeth = 13 made of steel
d=66.3; outer d="73
Series 5104: 5/8" x 3/8", number of teeth = 14 made of steel
d=71,3; outer d="78
Series 5105: 5/8" x 3/8", number of teeth = 15 made of steel
d=76,3; outer d="83
Bearing
Precision grooved ball bearing 6204-ZZ (-2RS)
Non-power-driven roller side: Series 2600
Power-driven conveyor rollers with chain drive series 5110
Use
For in-house unit handling and transport, particularly pallet handling
Resistant to temperatures from –30 °C to +80 °C
For heavy materials to be conveyed such as pallets and containers
Maximum dynamic load capacity
Conveyor roller Ø 80 mm 2.5 kN
Conveyor roller Ø 89 mm 5.0 kN
Conveyor roller Ø 108 mm 5.0 kN
Maximum conveying speed
0.8 m/s for conveyor roller with Ø 80, Ø 89, Ø 108 mm
Tube dimensions
Galvanised steel tube acc. to DIN 2394: Ø 80 x 2 mm, Ø 80 x 3 mm, Ø 89 x 3 mm, Ø 108 x 3.25 mm
Axle
Bright steel Ø 20, Ø 25 mm
Versions Internal thread, external thread, rigid axle, width across flats
Chain wheel
Single chain wheel
Series 5113: 5/8" x 3/8", number of teeth = 13 made of steel
d=66,3; outer d="73
Series 5114: 5/8" x 3/8", number of teeth = 14 made of steel
d=71,3; outer d="78
Series 5115: 5/8" x 3/8", number of teeth = 15 made of steel
d=76,3; outer d="83
Bearing
Precision grooved ball bearing 6204-ZZ (-RS)
Non-power-driven roller side: Series 2600
Power-driven conveyor rollers with chain drive series 5120
Use
For in-house unit handling and transport, particularly pallet handling
Resistant to temperatures from –10 °C to +40 °C
For heavy materials to be conveyed such as pallets and containers
Maximum dynamic load capacity
Conveyor roller Ø 80 mm 2.5 kN
Conveyor roller Ø 89 mm 3.5 kN
Conveyor roller Ø 108 mm 5.0 kN
Maximum conveying speed
0.8 m/s for conveyor roller with Ø 80, Ø 89, Ø 108 mm
Tube dimensions
Galvanised steel tube acc. to DIN 2394: Ø 80 x 2 mm, Ø 80 x 3 mm, Ø 89 x 3 mm, Ø 108 x 3.25 mm
Axle
Bright steel Ø 20, Ø 25 mm
Version Internal thread, external thread, rigid axle, axle with width across flats
Chain wheel
Double chain wheel
Series 5123: 3/4" x 7/16", number of teeth = 13 made of steel
d=79,6; outer d="87
Series 5125: 3/4" x 7/16", number of teeth = 15 made of steel
d=79,6; outer d="87
Bearing
Precision grooved ball bearing with metal seals
Optional Special version with precision grooved ball bearing
with rubber seals
Welded flange rings
Power-driven conveyor rollers with chain drive series 5130
Use
For in-house unit handling and transport, particularly pallet handling
Resistant to temperatures from –10 °C to +40 °C
For heavy materials to be conveyed such as pallets and containers
Maximum dynamic load capacity
Conveyor roller Ø 80 mm 2.5 kN
Conveyor roller Ø 89 mm 3.5 kN
Conveyor roller Ø 108 mm 5.0 kN
Maximum conveying speed
0.8 m/s for conveyor roller with Ø 80, Ø 89, Ø 108 mm
Tube dimensions
Galvanised steel tube acc. to DIN 2394: Ø 80 x 2 mm, Ø 80 x 3 mm, Ø 89 x 3 mm, Ø 108 x 3.25 mm
Axle
Bright steel Ø 20, Ø 25 mm
Version Internal thread, external thread, rigid axle, axle with width across flats
Chain wheel
Single chain wheel
Series 5123: 3/4" x 7/16", number of teeth = 13 made of steel
d=79,6; outer d="87
Series 5125: 5/8" x 3/8", number of teeth = 13 made of steel
d=66,3; outer d="73
Bearing
Precision grooved ball bearing with metal seals
Optional Special version with precision grooved ball bearing
with rubber seals
Welded flange rings
