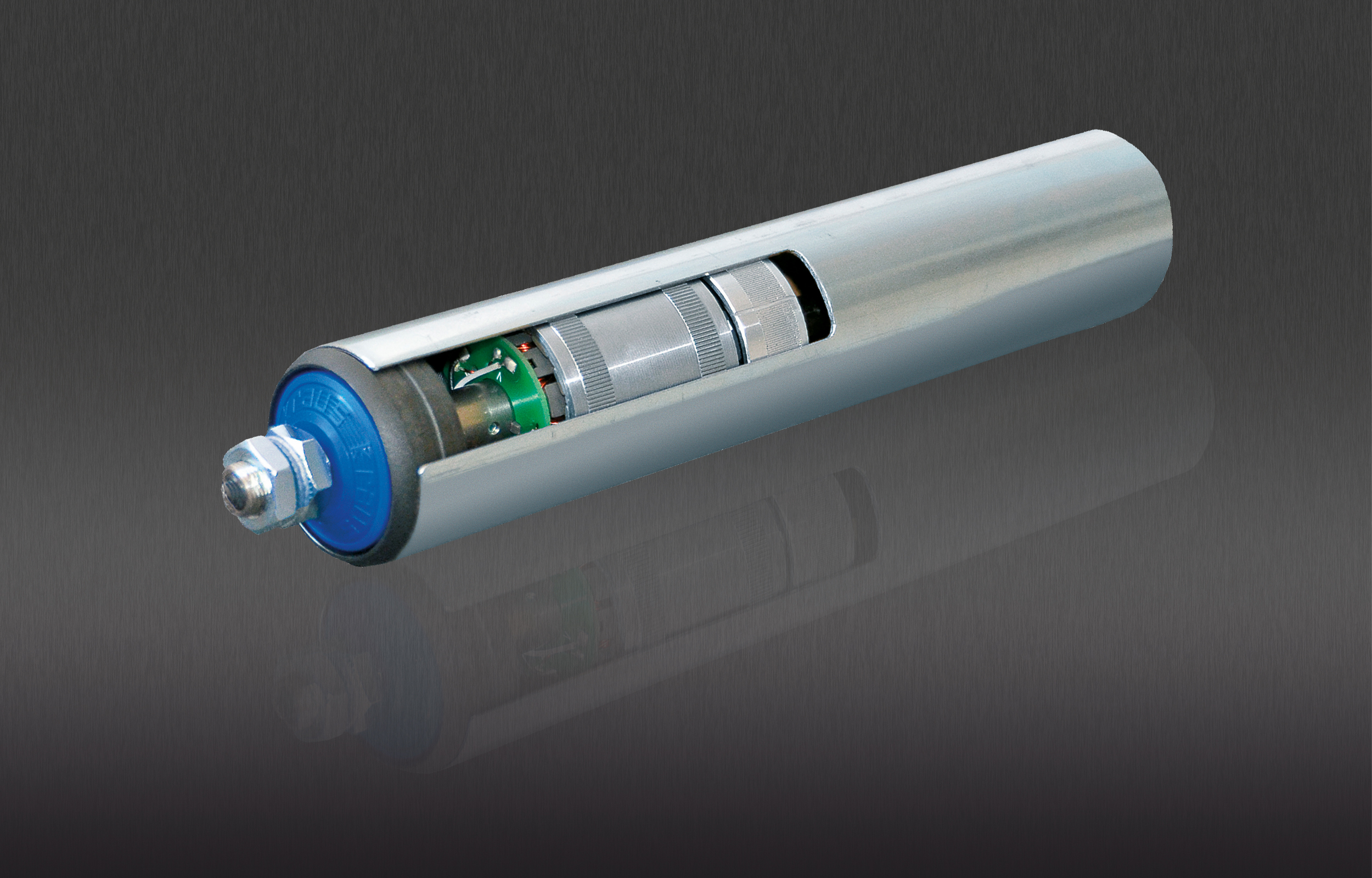

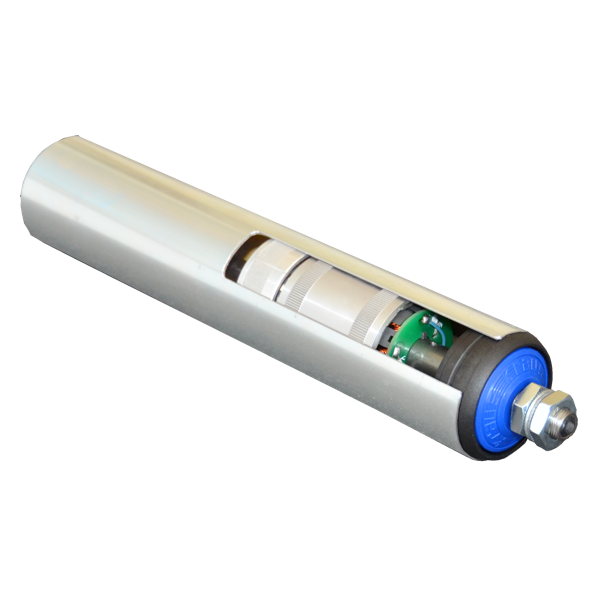

Drive Roller

Title
Drive Roller
Subtitle
gearless

Affordable cutting edge technology with highest reliability!

Only ONE drive roller fits for all velocities of conveying

  • Free wheeling, automatically holding position
  • Deceleration behaviour
  • Highest plant availability
  • Longest life time
  • Lowest current consumption at given conveying task: optimized power supply and wiring
  • Very low noise level: < 50 dB
  • Maintenance free, no wear parts, most sustainable bearings
  • Electrical and mechanical design induces highest reliability and energy efficieny
  • Contact free conveying via logic functions

FIELDS OF OPERATION: Roller conveyors | Belt converyors | Lifting platform loading | Packaging | Layer handling | Scales loading | Lifting units | Washer loading


BRANCHE: Automotive Industry | Food Industry | Mechanical Engineering | Measurement Technology | Packaging Technology | Warehouse Logistics | Production Logistics | Pharma

Projects

Fully automatic conveyance of washing baskets through a washer system

Fully automatic conveyance
of washing baskets through a washer system
Project describtion

Fully automatic conveyance of washing baskets through a washer system in the night shift. Transport without accumulation pressure thanks to one motor-driven roller per washing basket. A total of 47 motor-driven rollers were installed.

Advantages

Transport without accumulation pressure, first project with logistics function
No PLC required
Stepless speed regulation



Products

Performance

Freight up to 50 kg per drive roller | Load test is execeeding 10 million cycles at 30 kg | 2000 cycles per hour | Freely selectable constant speeds

Performance
Conveying speeds

continuously selectable up to 2 m/s

Mass conveyed

up to 100 kg per drive roller

Supply voltages

24 V and 48 V

Operating modes

S1, S3, acceleration, deceleration, magnetic holding torque, freewheeling (no gear box)

Speed control

analogue and digital


Protection

short circuit, over current, over voltage

Rated ambient temperature

0 °C to 40 °C (others on request)

Degrees of protection

IP 54, IP 20

Drives

round-, timing-, chain- and flat-belts, chains, without drive head for direct drives and conveyor belts

Motor controller

Controls acceleration and deceleration of the goods

Motor controller

The motor controllers include the drive control system and the control logic. The DC voltage is converted into a three-phase current according to the control Signal.

The motor controller includes a brake chopper to derive surplus energy to a resistor. The mind is the sensorless control of the polar wheel angle which provides the full force at any time.





Motor controller MCP

The controller MCP offers analog and digital modes of the speed control.

Motor controller MCL

The controller MCL provides additionally logic functions and accumulation conveying with zero pressure: Single release mode and block release mode. A gap between the goods is kept at any time.

The MCL has two interfaces for sensors. Thereby e.g. specific start and stop of one sector can be implemented without additional control efforts.

Logic and perfomance

The logic functions are integrated in the motor controller MCL and guarantee a controlled congestion-free flow of goods within a sector of driven segments.

Logic and perfomance
Logic Functions for highest flow rate

A segment consists of a drive roller, driven rollers, a motor controller and a sensor. The logic functions are either integrated in the motor controller MCL or sensors integrate them. Thereby the good in the specified segments of a conveyor line are automatically started and stopped.

Advantages

No need for central processing of the signals of each segment (start/ stop and empty / occupied)
Touchless flow of goods on conveyers without an additional programming effort
Easy wiring and low installation expenses

Singularising Intake Mode

The conveyed good runs through the complete line and get stopped at the last segment LCn. So the segment LCn is occupied. The LogiCARD control stops the next conveyed good contactless at LCn-1 as long as the following sector LCn is occupied. This information passes the LCn to LCn-1, i. e. the next good get stopped by LCn-1 in the respective Segment.

Darstellung Einzeleinlauf Fördergut












Singularising Release Mode

With singularising release mode the good LCn-1 proceeds if the good LCn has left it's segment completely. This information passes each LCn to the upstream LCn-1. In turn the LCn-1 starts it's upstream segment - and so on. Through this the goods are transported one by one from a segment to the following.

Darstellung Einzelabzug Fördergut














Block Intake Mode

The LogiCARD stops the promoting goods are touchless (in the block) in the buffer area and stay there till release signal from LCn arrives. A block of coveyed goods passes through the complete sector and get stopped at the last LCn of the sector. A block covers at least two successive segments, however, don't lead to the stop of the individual segments or don't let any gaps between promoting goods arise on the way to the last Segment. Occupied are now the segments LCn till LCn-length of block. The LCn passes this information to the LCn-1. That means the following good is recognized and stopped in the segment n-1 by the LCn-1. The goods aren't shoved together within a block and remain touchless.

Darstellung Blockeinlauf Fördergut













Block Release mode

With the block release mode all goods at a block of segments get moved, if the following zone is free. Usually all segments are passing once the last segment is empty; where applicable the whole downstream block has to be empty before. To increase the flow rate all segments of one removing block are started nearly at the same time.

Darstellung Blockabzug Fördergut
