Tapered gravity rollers

Title
Tapered rollers
Subtitle
gravity

Tapered gravity rollers for the safe conveying of unit loads round curves
You will find an overview of KRAUS conveyor rollers
here

Products

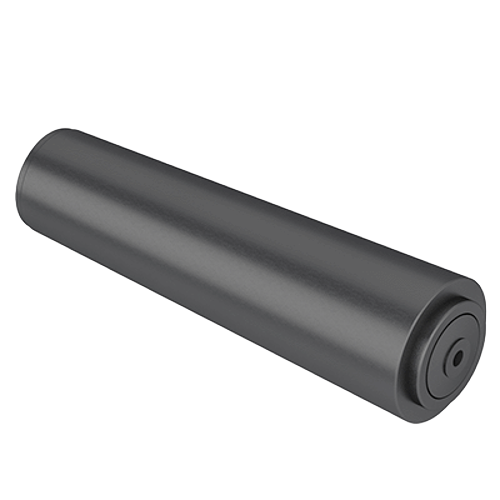

Tapered rollers series 6000

Labyrinth seal for splashwater and dust protection | tapered conveyor rollers guarantee conveyance of the material to be conveyed around curves | noise-insulating | also in non-rusting version

Konustragrollen Serie 6000
Further advantages

Anti-static conveyor roller

Use

For in-house unit handling and Transport
Resistant to temperatures from –10 °C to +40 °C

Maximum dynamic load capacity

0.8 kN

Maximum conveying speed

1.2 m/s


Tube dimensions

Galvanised steel tube acc. to DIN 2394: Ø 50 mm with plastic tapered elements slid in place
Optional V2A tube: Ø 50 x 1.5 mm

Axle

Bright steel Ø 10, Ø 12, Ø 14 mm, SK11 mm
Versions Internal thread, external thread, rigid axle, width across flats
Optional V2A axle

Bearing

Plastic bearing plate with precision grooved ball bearing 6202-ZZ (-2RS) and labyrinth seal
