Belt conveyors
Subtitle
Horizontal or upward
  • All-purpose conveyance solution for the conveyance of unit loads
  • for continual material flow between machines and areas

Products

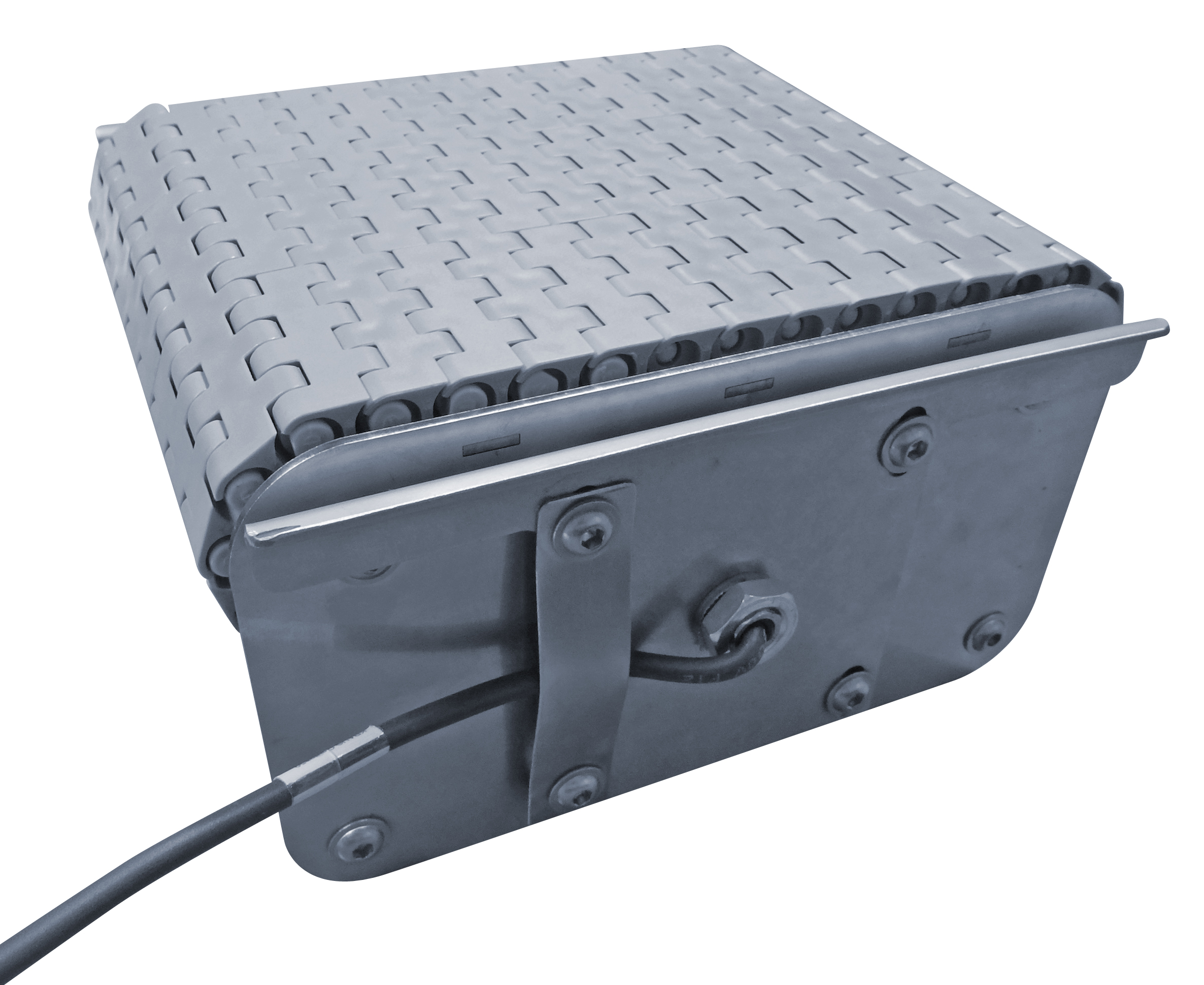

Mini module conveyor belt with motor-driven roller

Conveyance of unit loads up to 5 kg

Minimodulförderband mit Motorrolle
Frame structure

Special profile structure with bolted cross braces

Conveyor belt

Module belt, grey (PP, FTA-suitable)
Belt width: depending on application case and material to be conveyed

Standard widths

from 150 mm in 50 mm steps

Standard length

On request from 250 mm axle spacing


Drive

KRAUS motor-driven roller 24V, IP54
Reversal on both sides: Diameter 34 mm
Drive position centre with 78.8 mm diameter
Conveying speed: 3, 6, 9, 12, 15, 18, 24, 36 m/min

Surface finish

Anodised aluminium, zinc plated steel components

Advantages

Compact design as individual or connecting element
High flexibility
Maximum efficiency thanks to KRAUS motor-driven roller

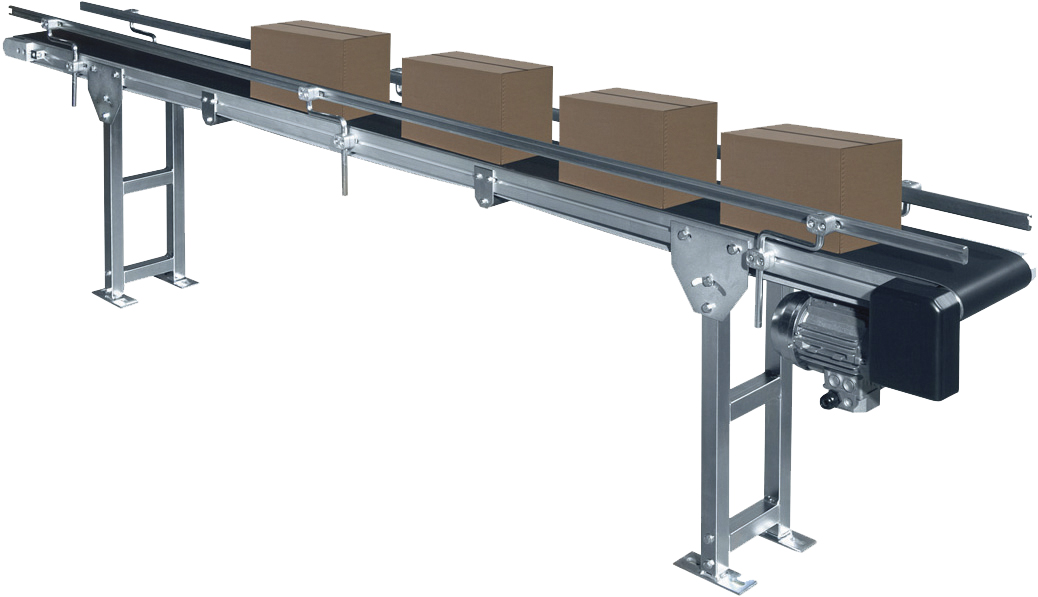

Conveyor belt FB 50 ALU

Conveyance of unit loads up to 20 kg total

Förderband FB 50 ALU
Frame structure

Aluminium system profile, anodised, with bolted cross braces
Frame dimensions: 50 x 50 mm

Conveyor belt

Standard PVC smooth, black
Belt width: depending on application case and material to be conveyed

Standard conveyor lengths

1000 mm, 2000 mm, 3000 mm, 4000 mm, 5000 mm

Drive

Three-phase gear motor 230/400 V – 50 Hz, IP55
Drum diameter: 55 mm


Standard drive position: on the right-hand side seen in direction of conveyance, directly attached to the drive wheel
Conveying speed: 6-30 m/min

Surface finish

Anodised aluminium, zinc plated steel components

Advantages

Safe and gentle conveyance of sensitive goods
Optimum adaptation possibility of belt version
Can be combined with any of our accessories

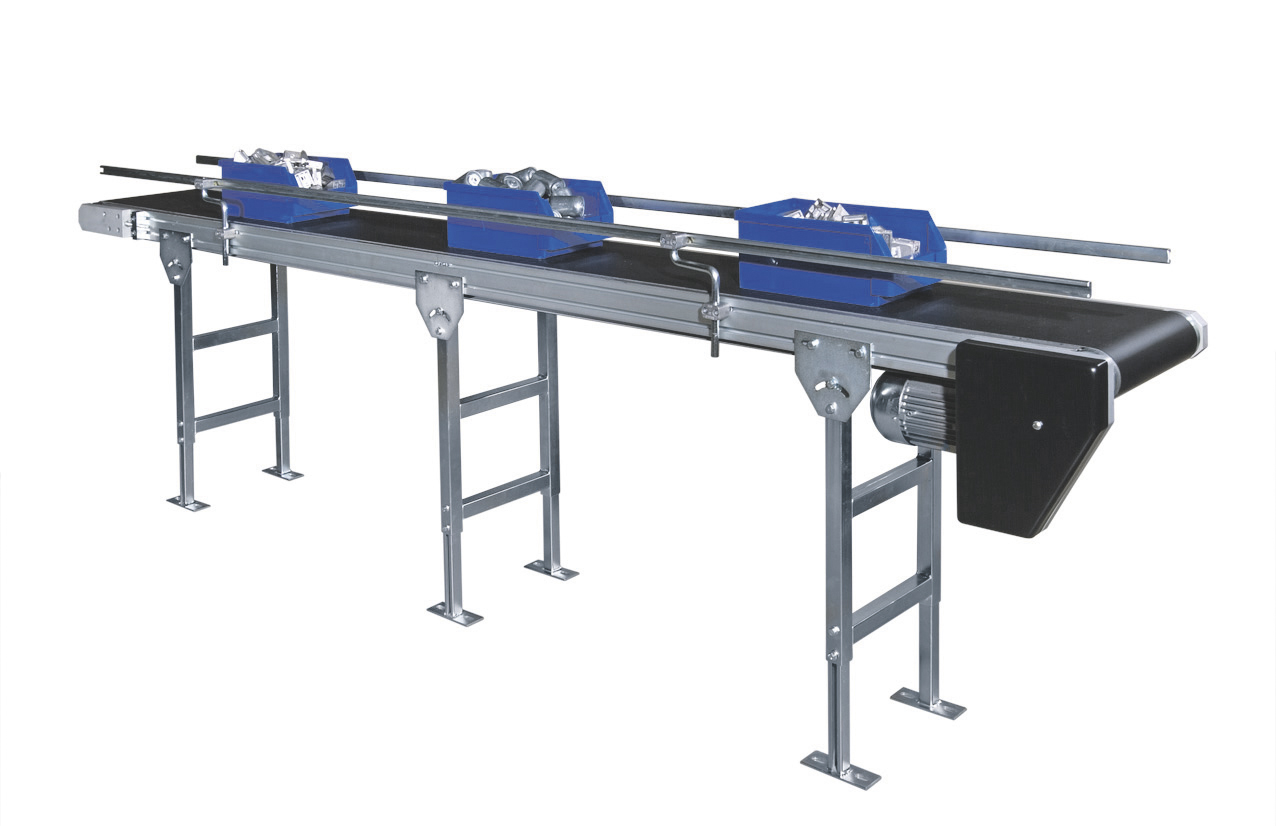

Conveyor belt FB 80 ALU

Conveyance of unit loads up to 50 kg total

Förderband FB 80 ALU
Frame structure

Aluminium system profile, anodised, with bolted cross braces
Frame dimensions: 80 mm x 40 mm

Conveyor belt

Standard PVC smooth, black
Belt width: depending on application case and material to be conveyed

Standard conveyor lengths

2000 mm, 4000 mm, 6000 mm, 8000 mm, 10,000 mm

Drive

Three-phase gear motor 230/400 V – 50 Hz, IP55
Drum diameter: 90 mm


Standard drive position: on the right-hand side seen in direction of conveyance, directly attached to the drive wheel or chain drive
Conveying speed: 3–36 m/min

Surface finish

Anodised aluminium, zinc plated steel components

Advantages

Safe and gentle conveyance of sensitive goods
Optimum adaptation possibility of belt version
Can be combined with any of our accessories
Combines the lightweight design of the FB50 with higher load capacity

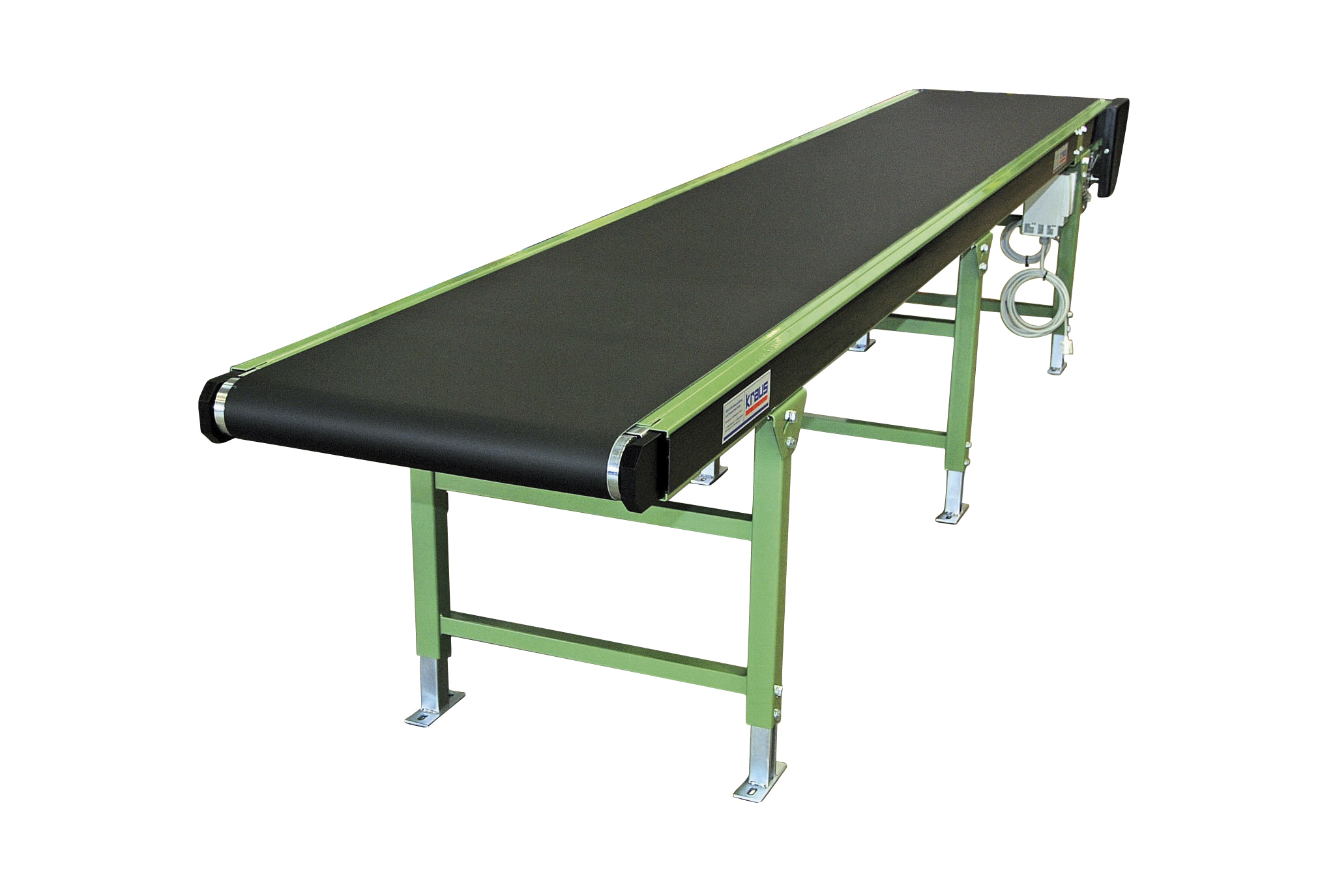

Conveyor belt FB 90 STEEL

Conveyance of unit loads up to 100 kg total

Förderband FB 90 STAHL
Frame structure

Steel C-profile, galvanised, with bolted cross braces
Frame dimensions: 100 x 30 x 2 mm

Conveyor belt

Standard PVC smooth, black
Belt width: depending on application case and material to be conveyed

Standard conveyor lengths

2000 mm, 4000 mm, 6000 mm, 8000 mm, 10,000 mm

Drive

Three-phase gear motor 230/400 V – 50 Hz, IP55
Drum diameter: 90 mm


Standard drive position: on the right-hand side seen in direction of conveyance, directly attached to the drive wheel or chain drive
Conveying speed: 6–30 m/min

Surface finish

Painted in RAL colours/galvanised

Advantages

Safe and gentle conveyance of sensitive goods, even if these have a higher weight
Optimum adaptation possibility of belt version
Can be combined with any of our accessories

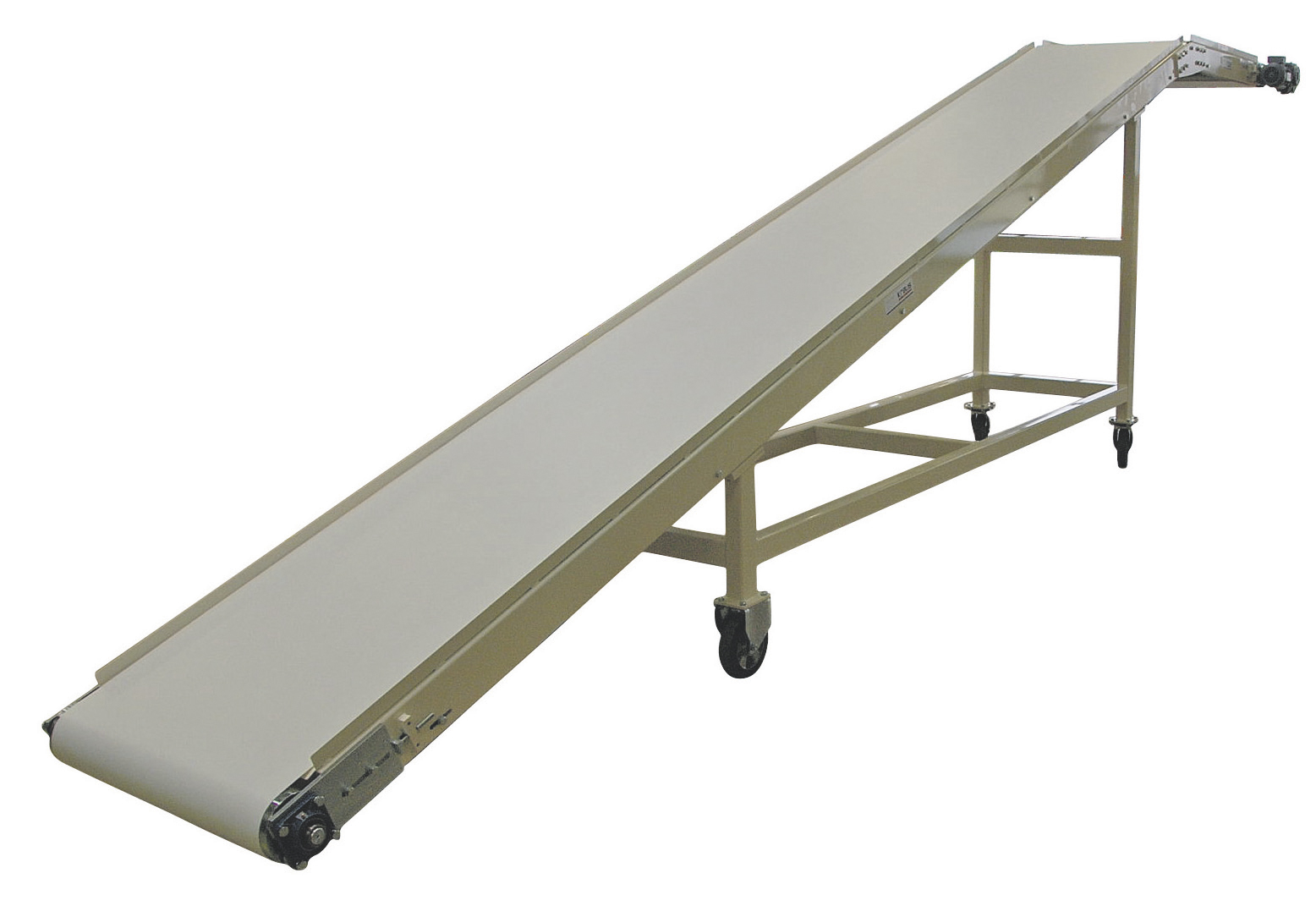

Conveyor belt FB 150 STEEL

Conveyance of unit loads up to 200 kg total

Förderband FB 150 STAHL
Frame structure

Steel plate (5 mm), canted, with bolted cross braces

Conveyor belt

Standard PVC smooth, black
Belt width: depending on application case and material to be conveyed

Conveyor length

on request

Drive

Three-phase gear motor 230/400 V – 50 Hz, IP55
Drum diameter: 150 mm


Standard drive position: on the right-hand side seen in direction of conveyance, directly attached to the drive wheel or chain drive
Conveying speed: on request

Surface finish

Painted in RAL colours/galvanised

Advantages

Use with high weight load
Optimum adaptation possibility of belt version
Can be combined with any of our accessories

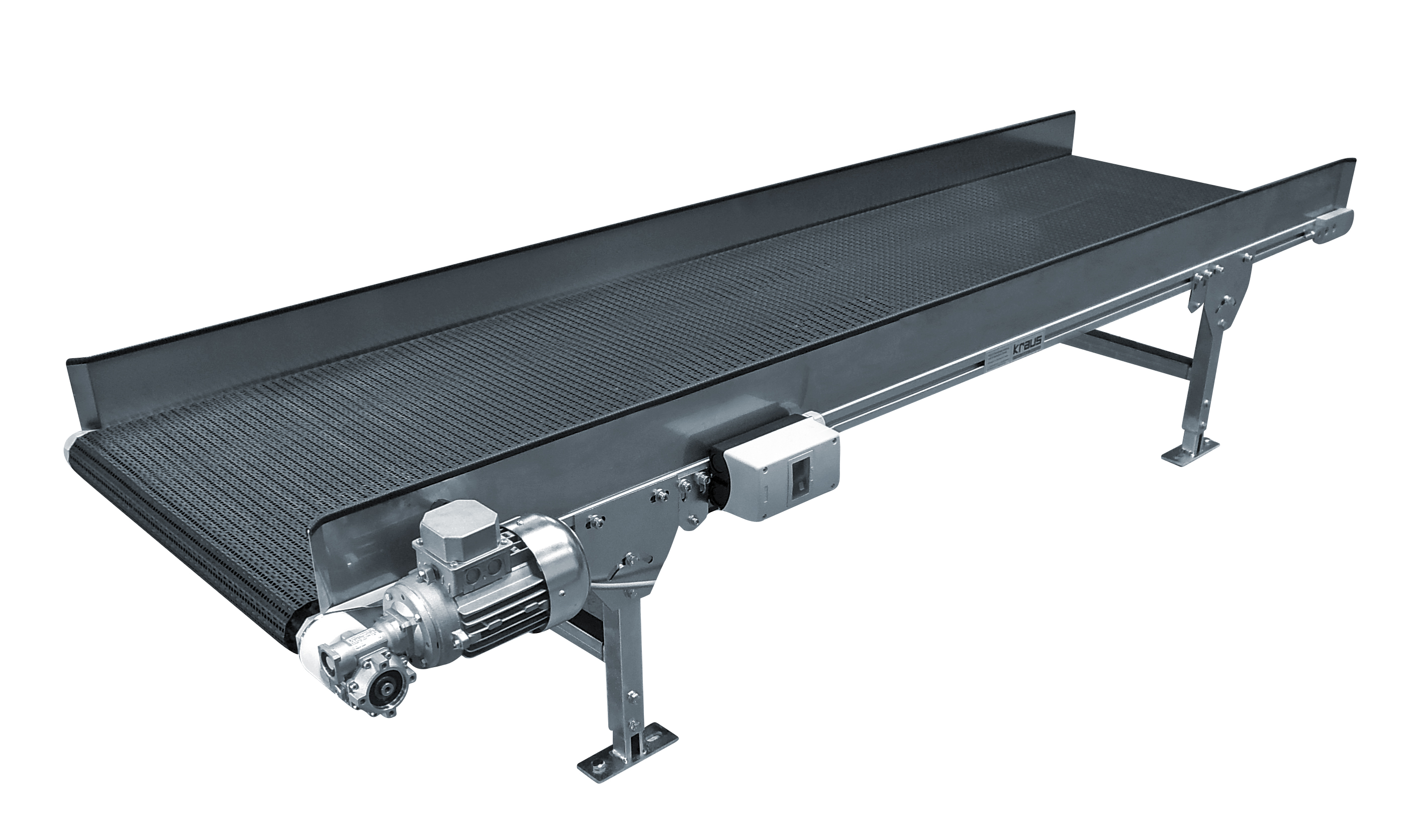

Module belt conveyor FB50

Conveyance of unit loads up to 50 kg depending on design

Modulbandförderer FB50
Frame structure

Steel C-profile, galvanised, with bolted cross braces
Frame dimensions: 100 x 30 x 2 mm

Conveyor belt

Module belt, grey
Belt width: depending on application case and material to be conveyed

Standard conveyor lengths

1000 mm, 2000 mm, 3000 mm, 4000 mm, 5000 mm

Drive

Three-phase gear motor 230/400 V – 50 Hz, IP55
Drum diameter: 50 mm



Standard drive position: on the right-hand side seen in direction of conveyance, directly attached to the drive wheel or chain drive
Conveying speed: 3-36 m/min

Surface finish

Painted in RAL colours/galvanised

Advantages

Simple maintenance
Highly flexible width : length ratio
Belt surface easy to clean
Form-locking drive element
Can be combined with any of our accessories

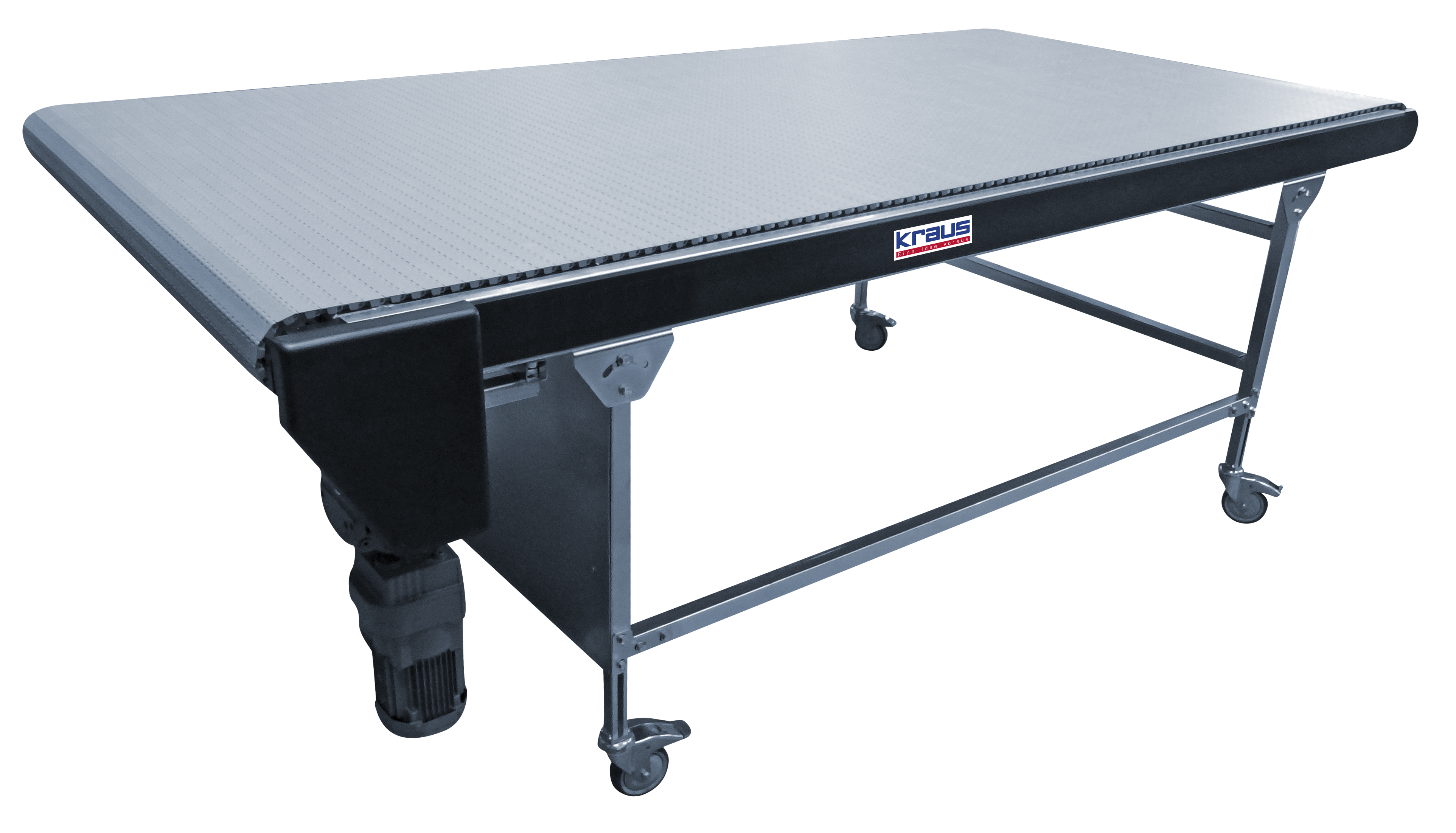

Module belt conveyor FB90

Conveyance of unit loads up to 100 kg depending on design

Modulbandförderer FB90
Frame structure

Steel C-profile, galvanised, with bolted cross braces
Frame dimensions: 100 x 30 x 2 mm

Conveyor belt

Module belt, grey
Belt width: depending on application case and material to be conveyed

Standard conveyor lengths

1000 mm, 2000 mm, 3000 mm, 4000 mm, 5000 mm

Drive

Three-phase gear motor 230/400 V – 50 Hz, IP55
Drum diameter: 90 mm



Standard drive position: on the right-hand side seen in direction of conveyance, directly attached to the drive wheel or chain drive
Conveying speed: 3–36 m/min

Surface finish

Painted in RAL colours/galvanised

Advantages

Simple maintenance
Highly flexible width : length ratio
Belt surface easy to clean
Form-locking drive element
Can be combined with any of our accessories

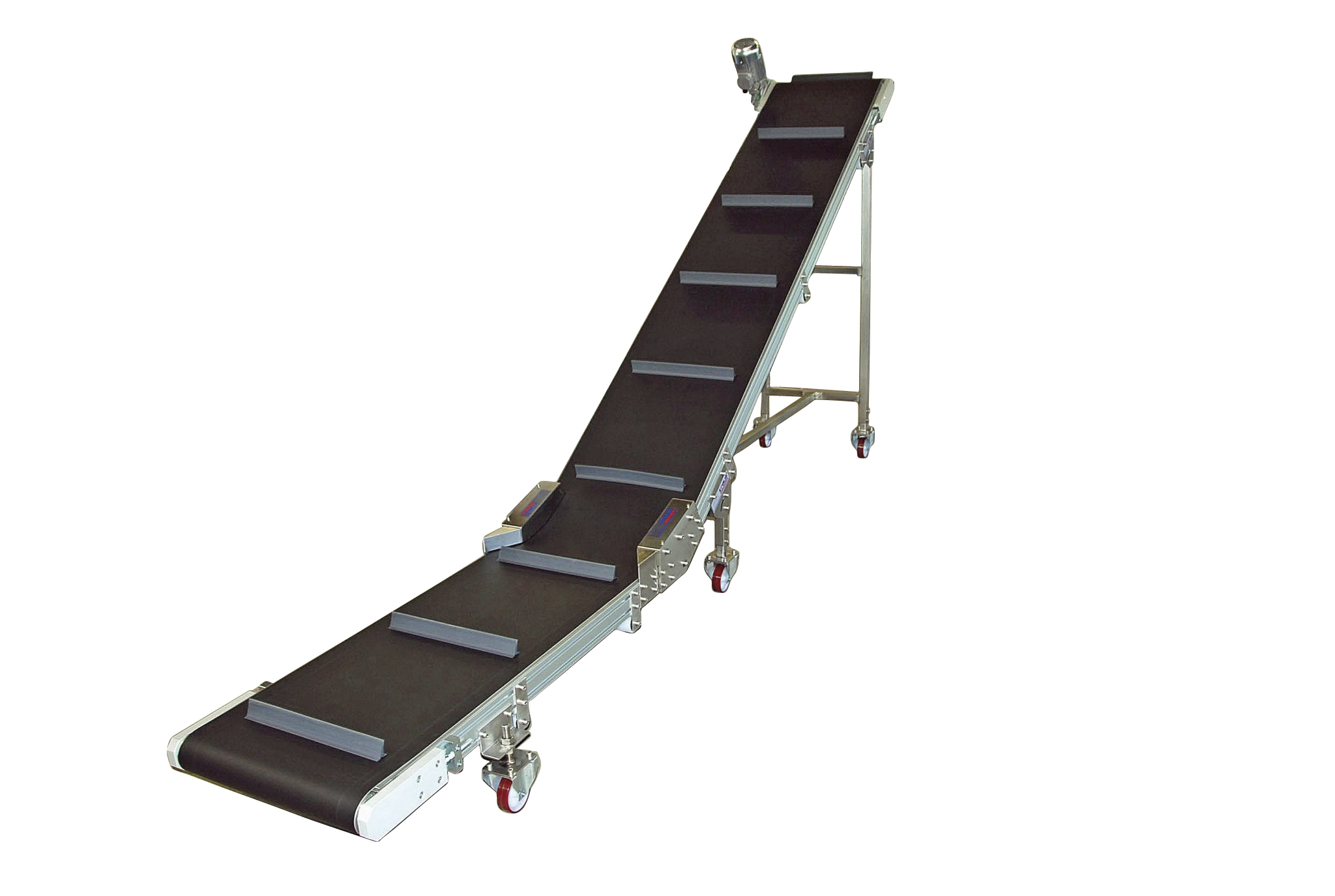

Angled belt conveyors

Load capacity max. 200 kg total

Knickbandförderer
Version

Angled belt conveyors permit stepless, uninterrupted transitions with horizontal inflow and/or discharge zones.
These horizontal conveyor belt zones guarantee smooth transition of the products to the conveyor belt or from the conveyor belt to further Systems.

An angled belt conveyor version is possible for all conveyor belt types (FB 50 ALU, FB 80 ALU, FB 90 and FB 150).


Advantages

Very good pick-up or discharge of the conveyed products
Stepless, uninterrupted transition in the angled area
Can be made of aluminium, galvanised/coated steel or stainless steel
Sturdy design, so no twisting , leading to greater belt running accuracy
Can be combined with any of our accessories

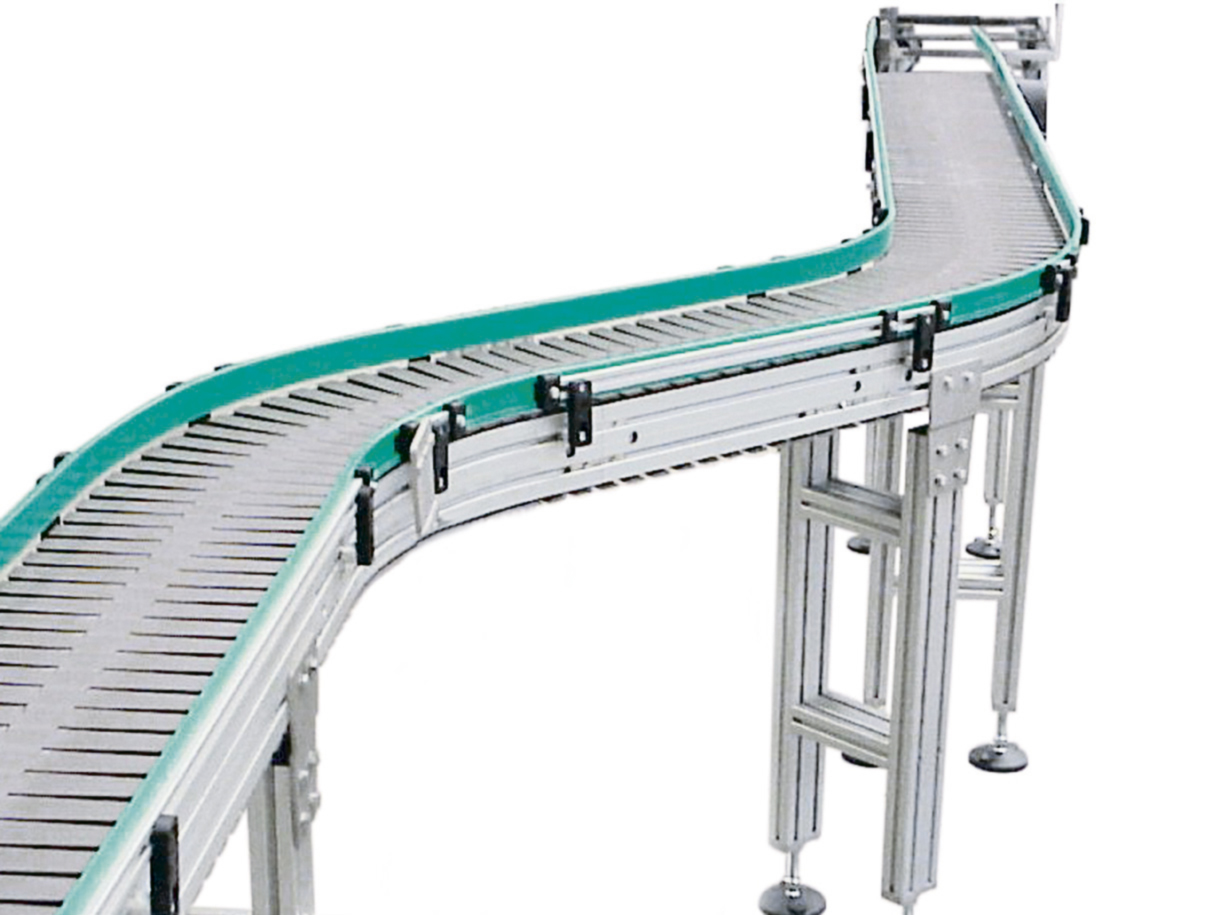

BAT conveyor belts

Maximum load per conveyor 150–300 kg, depending on the pulling force

BAT-Förderbänder
Load capacity

Horizontal conveyance: max. 30 kg (to keep wear of the gliding rail low)
Ascending conveyance: max. 15 kg (depending on the power of the pusher Dogs)
Maximum load per conveyor: 150–300 kg, depending on pulling force, overall load on the chain and design

General product description

At the heart of this three-dimensional system is a linked belt chain which can be moved in all directions and is guided in an aluminium Profile.
The easy to assemble basic modules offer almost unlimited combination Options.
Bend wheels and slide bends are used to change direction.
The chain is usually smooth, but can be enhanced by so-called “pusher dogs” to make workpiece conveyance at a gradient greater than 5 possible.
The conveyor system works with chain systems in the widths 31.8 to 304.8 mm.

Maximum length of the conveyor

20–25 m, depending on the overall load, capacity of the drive unit, speed and design


Versions

Aluminium or stainless steel profile
Different chain versions (food-safe, with non-slip inserts, with wheels, with flexible pusher dogs, made of stainless steel)

Drive unit

Worm gearmotor 230/400 V
as an end drive unit: with roller chain overdrive or fitted on the side of the end piece as a shaft mounted gearmotor

Useful width of conveyor

BAT K 325
For small products such as dairy and frozen products, bottles, parcels up to 20 mm in width with fixed or adjustable lateral guides

BAT K 750
For conveying larger products (container conveyance) in a width range of 220 to 400 mm

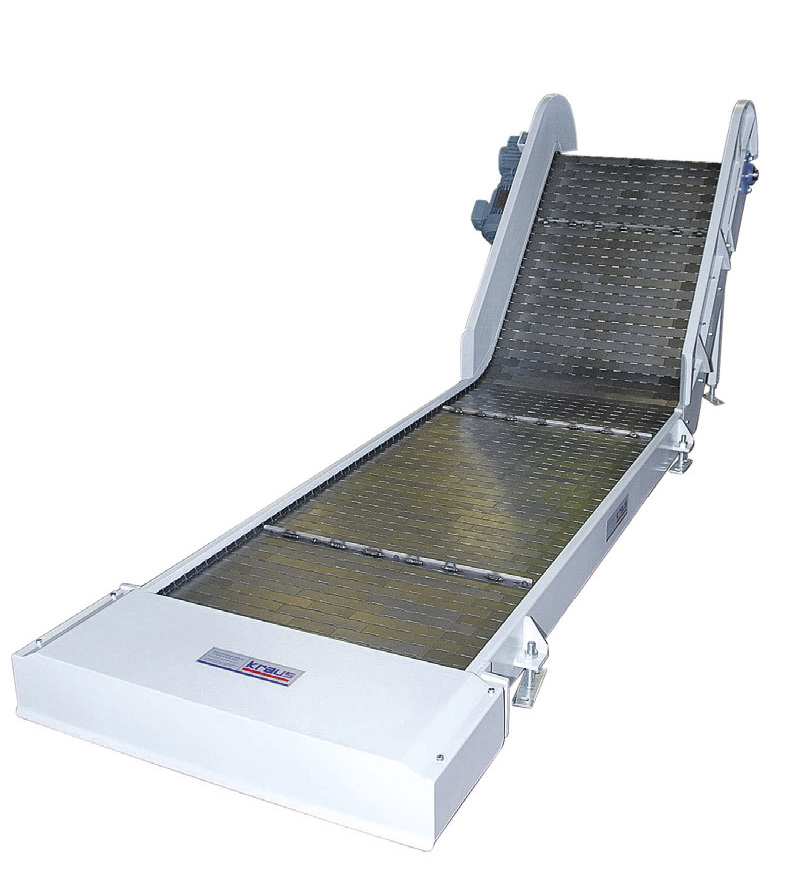

Hinged belt conveyor

Load capacity max. 50 kg/belt

Scharnierbandförderer
Frame structure

Basis FB 80
Aluminium system profile, anodised, with bolted cross braces
Frame dimensions: 80 x 40 mm

Basis FB 90
Steel C-profile, galvanised, with bolted cross braces
Frame dimensions: 100 x 30 x 2 mm

Hinged belt

Standard module belt

Hinged belt width

The width depends on the respective application case and the unit loads to be conveyed.

Standard conveyor lengths

2000 mm, 4000 mm, 6000 mm



Drive

Three-phase gear motor 230/400 V – 50 Hz
Standard drive position: on the right-hand side seen in direction of conveyance
Conveying speed: 3-36 m/min

Surface finish

Zinc plated steel, anodised aluminium

Advantages

Material resistant to rotting
Durable
Physiologically safe
Problem-free cleaning
Form-locking drive element

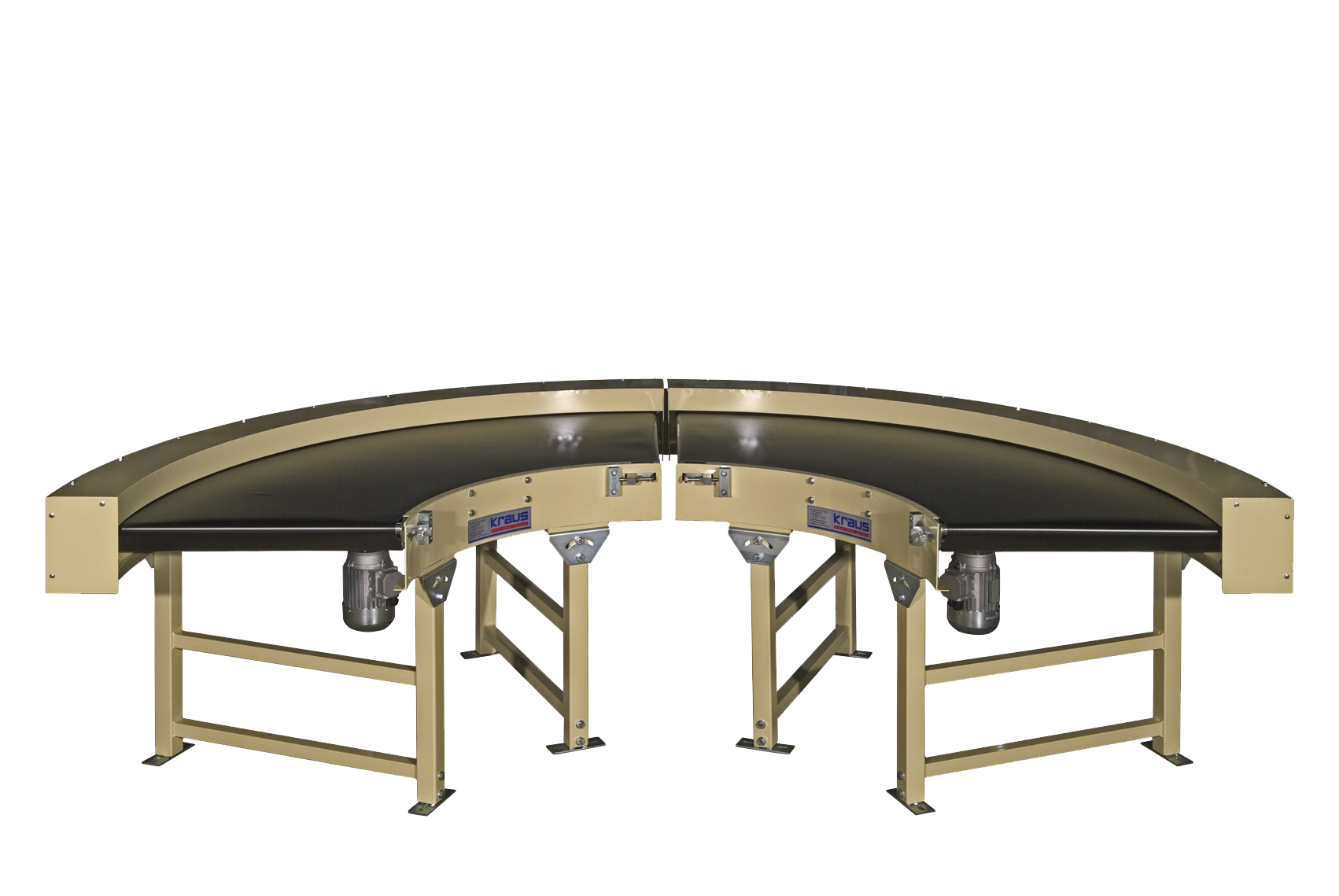

Belt curves

Load capacity max. 50 kg/curve at 90° angle around the corner

Gurtkurven
Frame structure

Coated steel plate with welded cross braces or stainless steel

Conveyor belt

Two-layer polyester fabric with the respective cover support required

Belt deflection

Cylindrical end rollers make problem-free connections to all belt conveying systems possible
No lubrication in the belt area

Inner radius

Standard: 600 mm, 900 mm

Conveyance angle

Standard 90°, special versions 30° to 180°



Standard useful width

200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, 1000 mm

Drive

Three-phase motor 230/400 V – 50 Hz
Located underneath in the centre on the outer radius (either inside or outside the Frame)
Suitable for reverse operation
The force is transmitted by means of a friction wheel
Conveying speed: constant or steplessly adjustable

Surface finish

Painted in RAL colours/galvanised

Advantages

Extremely versatile
Quiet, safe to use and low-maintenance
Optimum adaptation possibility of belt version
